Introduction to the 2022 MakeX Starter Arena
This kit does not include the MakeboX and frame.
1. Basic information

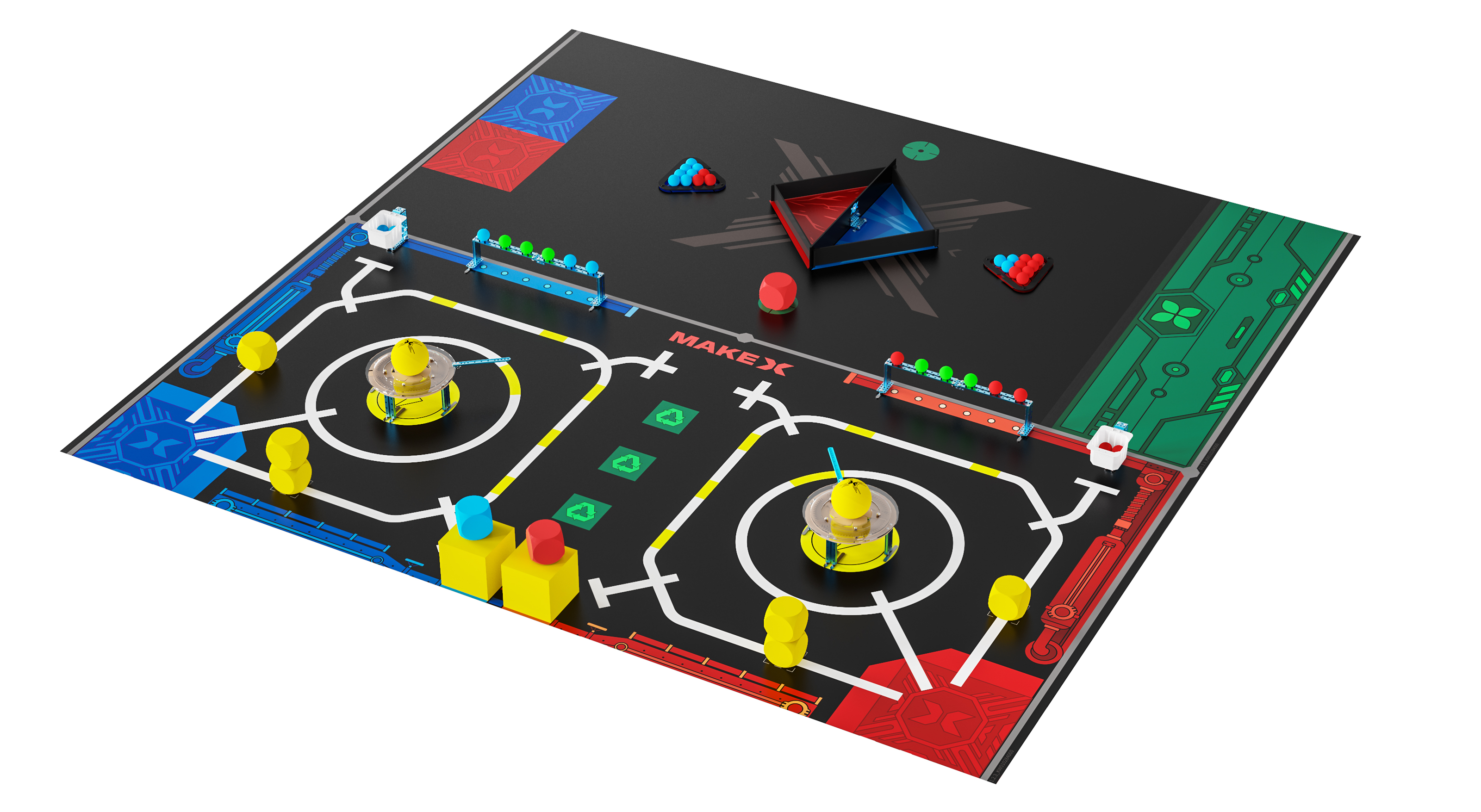

2022 MakeX Starter Arena
| Name | 2022 MakeX Starter Arena |
|---|---|
| SKU | P1090044 |
| EAN | 6928819513624 |
| Package type | Paper box |
| Package size | 522162329 mm |

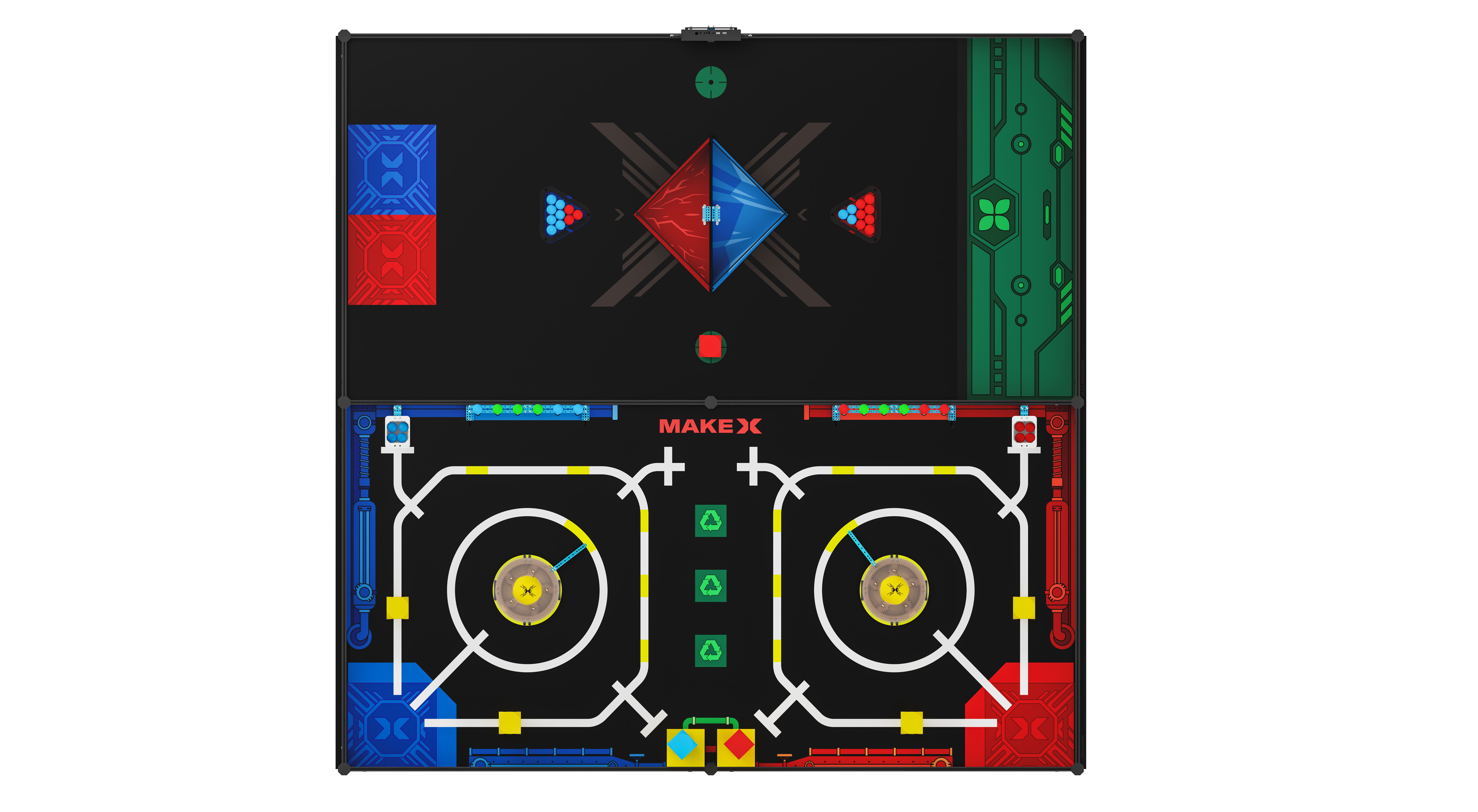

| 3mm (thickness)*80mm (inner diameter)*1190mm (length) (Map) | |
| Gross weight (including packaging) | 5.68kg (88.2oz) |
| Others | Remote control and battery not included |
2. Overview
If you want to save money by making your own frames, only want to use the arena for practice, or have already purchased a MakeX starter frame for the 2020 or 2021 season, then we recommend you purchase the **2022 MakeX Starter Arena **for practice or arena upgrades.
3. Parts list
| Name | 2022 MakeX Starter Arena |
|---|---|
| Zero Carbon Map | 2 |
| Red Cube 70mm | 3 |
| Blue Cube 70mm | 2 |
| Yellow Cube 70mm | 6 |
| Yellow Cube 120mm | 2 |
| Red Ball 32mm | 2 |
| Blue Ball 32mm | 20 |
| Green Ball 32mm | 60 |
| PU Ball | 1 |
| Wrench 5&7 | 1 |
| Scredriver Cross&2.5mm | 1 |
| Plastic Cup | 1 |
| Bracket 3*8 | 60 |
| Hinge 40*24mm | 4 |
| Plate-184 | 20 |
| Slide Beam-064 | 2 |
| Plate 3*6 | 60 |
| Bracket 3*3 | 2 |
| Plastic Rivet-R4060 | 6 |
| Hex Lock Nut M4 | 1 |
| Round Ball Rack | 2 |
| Beam-140 | 12 |
| Board A | 5 |
| Board B | 5 |
| Stickers | 2 |
| Bracket 3*6 | 2 |
| Triangle board | 5 |
| Screw M4*8 | 1 |
| Screw M4*14 | 1 |
| Hex Nut M4 | 1 |
| Strip iron | 40 |
| Magnetic column | 35 |
| Magnet sheet | 40 |
| Plate-184 | 20 |
4. Assembly instruction
After checking the number of parts, refer to the following document to assemble the 2022 MakeX Starter Arena. 2022 MakeX Starer零碳行动场地搭建步骤图_说明书_V1.0_D1.1.2_KD010419000_view.pdf 2022 MakeX Starer零碳行动场地搭建步骤图_说明书_V1.0_D1.1.2_KD010419000_view.pdf
5. More information
Getting started with the 2022 MakeX Starter Educational Competition Kit：makeblock.com/en/docs/cyberpi/22starter-start Introduction to the 2022 MakeX Starter Add-on Pack：makeblock.com/en/docs/cyberpi/starter-add-on mBlock online help：makeblock.com/en/docs/cyberpi/mbot2-mobile-coding mBot2 operation guide: makeblock.com/en/docs/cyberpi/mbot2-start Introduction to the 2022 MakeX competitions and kits：makeblock.com/en/docs/cyberpi/22makex
