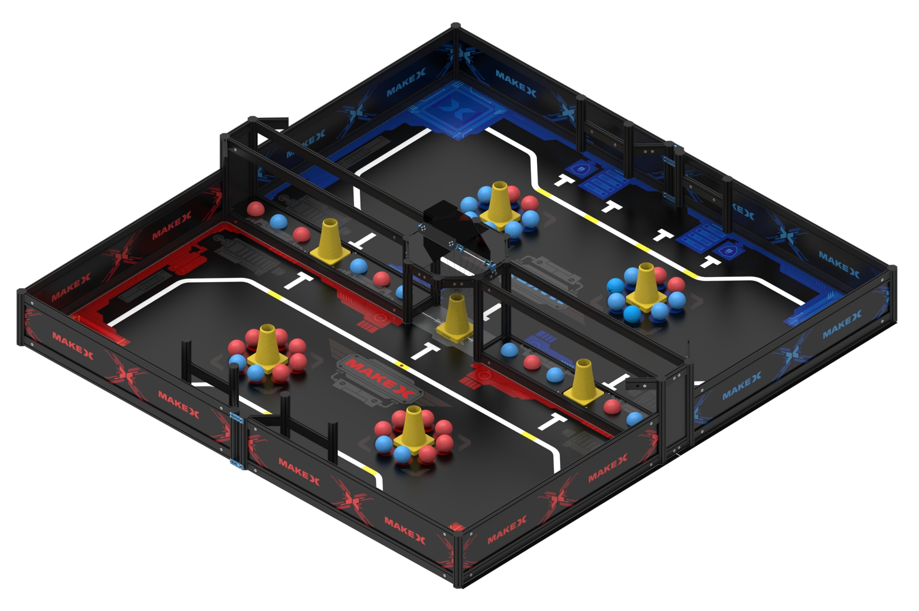

Introduction to the 2024 MakeX Explorer Digital Pioneer Arena and Frame
The kit does not include the MakeboX.
1. Basic information
| Name | 2024 MakeX Explorer Digital Pioneer Arena and Frame |
|---|---|
| SKU | P1090054 |
| EAN | 193122018593 |
| Package type | Paper box |
| Package size (mm) | 100×100×1300 (map) |
| 1180×220×120 (frame parts-1) | |
| 1175×210×115 (frame parts-2) | |
| 571×366×364 (other parts) | |
| Gross weight (including packaging) | 41.5 kg (91.49 lb) |
| Others | Remote control and battery not included |
2. Overview
If this is your first MakeX Explorer competition, or if you would like to purchase a complete package for practice or hosting a MakeX competition, purchase the** 2024 MakeX Explorer Digital Pioneer Arena and Frame**.
3. Parts list
Make sure the following parts are included in the kit. If there is any missing part, contact our after-sales service or distributors.
| Name | Quantity |
|---|---|
| Flat beam 1550-120 | 22 |
| Flat beam 1550-220 | 4 |
| Flat beam 1550-960 | 8 |
| Flat beam 1550-1126 | 16 |
| Flat beam 1550-1126 | 16 |
| Octagonal pillar 4040-45 | 4 |
| Octagonal pillar 4040-250 | 16 |
| Octagonal pillar 4040-400 | 8 |
| Octagonal pillar cover | 56 |
| MakeX board blue & black | 4 |
| MakeX board red & black | 4 |
| Board A | 2 |
| Board B | 2 |
| Board C | 2 |
| Board D | 4 |
| MakeboX bracket | 1 |
| Screw M4*8 | 45 |
| Screw M4*14 | 40 |
| Screw M4*16 | 5 |
| Headless hex screw M3*8 | 5 |
| Shaft | 1 |
| Hex nut M4 | 25 |
| Rectangular nut M4 | 45 |
| Shaft collar | 4 |
| Brass stud | 3 |
| Hex stud | 8 |
| Plate | 8 |
| U-shaped bracket | 4 |
| Bracket P3 | 2 |
| Map | 1 |
| Blue ball | 22 |
| Red ball | 22 |
| Yellow cone | 7 |
| Ball net | 1 |
| Hook | 16 |
| Rotatable baffle 90° | 2 |
| Flat beam cover | 4 |
| Double-sided fabric tape | 1 |
| Transparent tape | 1 |
| Wrench 5 mm & 7 mm | 1 |
| Screwdriver hex 2.5 mm & cross | 1 |
| Hex Allen key T30 | 1 |
| Hex key 1.5 mm | 1 |
4. Assembly instructions
After checking the number of parts, refer to the following document to assemble the 2024 MakeX Explorer Digital Pioneer Arena. 2024 MakeX Explorer Digital Pioneer Arena Assembly Instructions.pdf
