Introduction to the 2024 MakeX Challenge Ultimate Winner Educational Competition Kit
1. Basic information
| Name | 2024 MakeX Challenge Ultimate Winner Educational Competition Kit |
|---|---|
| SKU | P1090056 |
| EAN | 193122018654 |

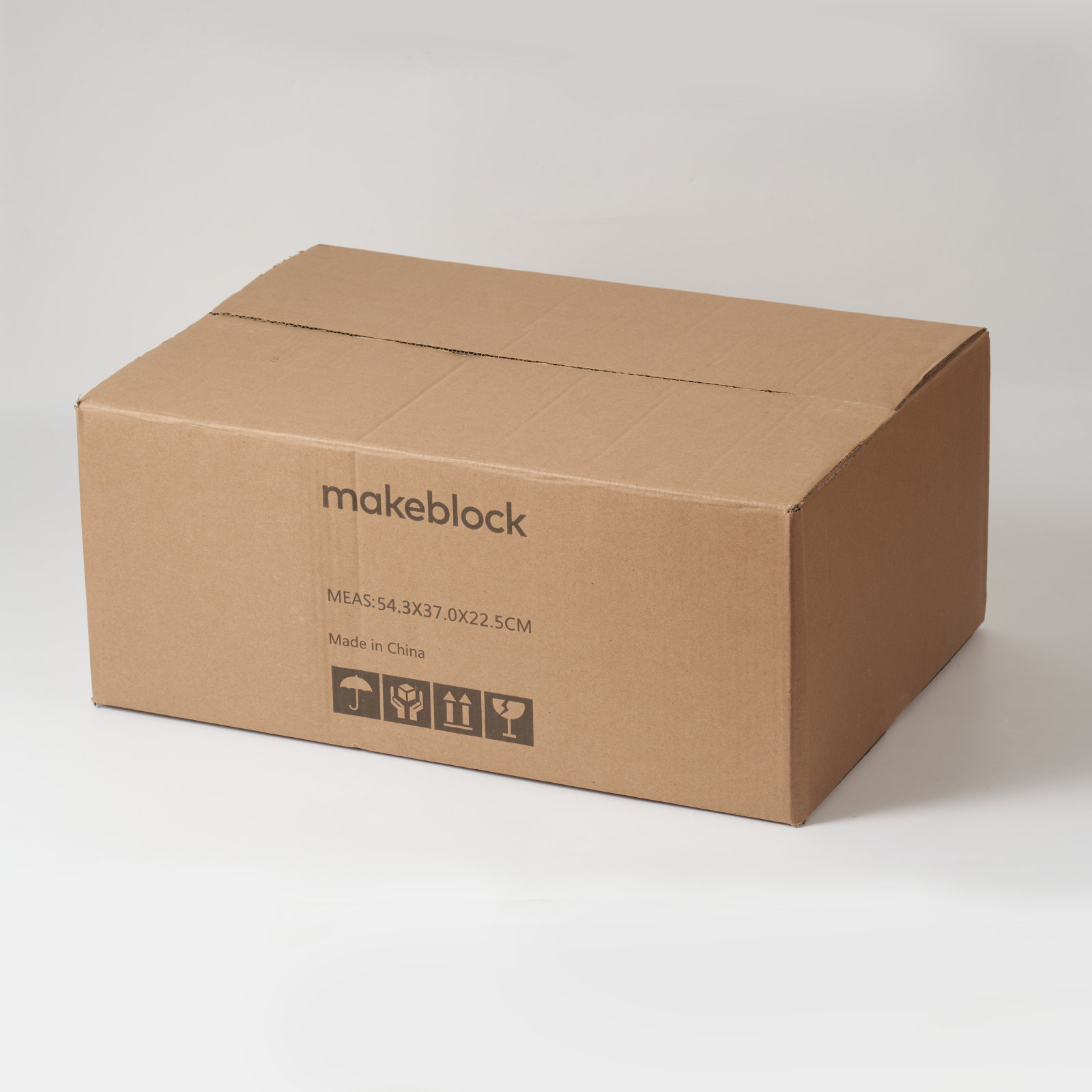

| Package type | Paper box |
| Package size (mm) | 543×370×225 |
| Gross weight (including packaging) | 17.76 kg (39.15 lb) |
| Others | Remote control and battery included |
2. Overview
The 2024 MakeX Challenge Ultimate Winner Educational Competition Kit features:
- abundant electronic and structural parts, allowing you to build robots in more forms and ways.
- Mecanum wheels, promising agile motion of robot cars and thus facilitating the accomplishment of tasks.
- high-performance motors and servos, meeting the power needs of large robots.

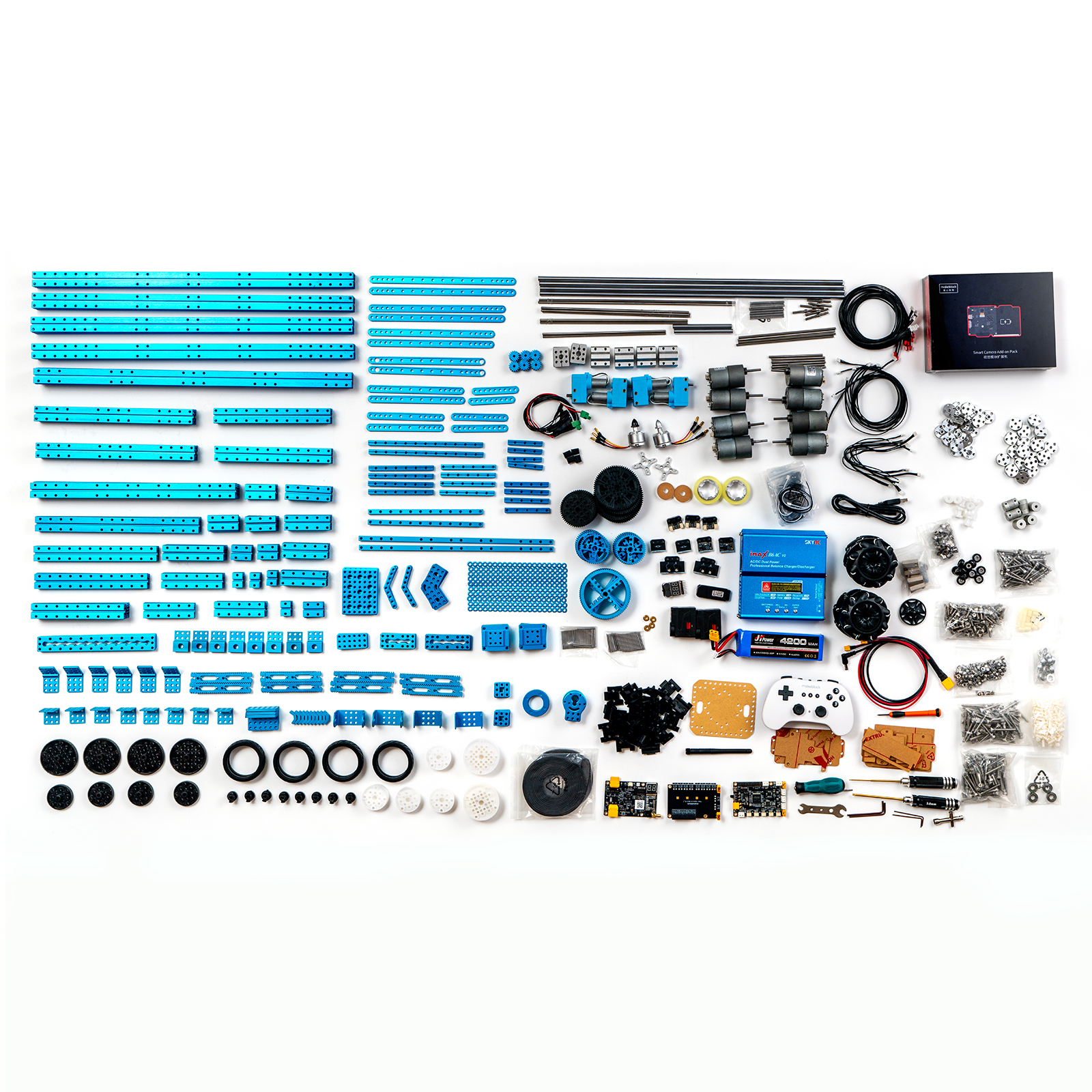

3. Parts list
| Name | Quantity | Documentation |
|---|---|---|
| NovaPi | 1 | For technical information on NovaPi, see NovaPi. |
| Power expansion board | 1 | For technical information on power expansion board, see Power Extension Board (NovaPi). |
| Power management module | 1 | For technical information on power management module, see Power Management Module V2.0. |
| 180 smart encoder motor | 4 | For technical information on 180 smart encoder motor, see 180 Smart Encoder Motor. |
| DC motor-37 (200 RPM) | 4 | For technical information on DC motor-37, see DC Motor-37. |
| DC motor-37 (50 RPM) | 4 | |
| Servo MS-12A | 2 | For technical information on servo MS-12A, see Smart Servo MS-12A. |
| Brushless motor tightened clockwise | 1 | For technical information on brushless motor, see Direct-Current Brushless Motor. |
| Brushless motor tightened counterclockwise | 1 | |
| Bluetooth dongle | 1 | For the operation guide of Bluetooth dongle, see Wireless Adapter. |
| Bluetooth controller | 1 | For technical information on Bluetooth controller, see Bluetooth Controller. |
| Bluetooth module | 2 | For technical information on Bluetooth module, see Bluetooth. |
| Smart camera | 1 | For technical information on smart camera, see Smart Camera. |
| Extend module | 4 | For technical information on extend module, see Extend Module. |
| Ranging sensor | 3 | For technical information on ranging sensor, see Ranging Sensor. |
| Dual RGB color sensor | 2 | For technical information on dual RGB color sensor, see Dual RGB Color Sensor. |
| Brushless motor bracket | 2 |
- The kit uses CNC machined aluminum connecting pieces for strong structures and tight fits.
- The kit is compatible with a wide range of industry standard parts, making it perfect for various industrial applications.
For information on beams (31 types, 102 items), see Slide Beam 0824 Beam 0808 Square Beam 2424
For information on brackets (10 types, 44 items), see Brackets.
For information on linkages (8 types, 46 items), see Linkages. | | Low voltage buzzer alarm | 1 | | | Slide beam-016 | 8 | | | Slide beam-032 | 6 | | | Slide beam-048 | 8 | | | Slide beam-080 | 4 | | | Slide beam-096 | 4 | | | Slide beam-112 | 4 | | | Slide beam-144 | 4 | | | Slide beam-176 | 2 | | | Slide beam-192 | 2 | | | Slide beam-256 | 2 | | | Slide beam-320 | 4 | | | Slide Beam-496 | 4 | | | Square beam 2424-072 | 4 | | | Square beam 2424-184 | 2 | | | Square beam 2424-248 | 2 | | | Square beam 2424-504 | 4 | | | Beam-076 | 2 | | | Beam-092 | 2 | | | Beam-124 | 2 | | | Beam-156 | 2 | | | Beam-188-L2-R1 | 2 | | | Beam-204 | 2 | | | Beam-220 | 2 | | | Beam-236 | 2 | | | Square beam-056 | 4 | | | Square beam-072 | 4 | | | Square beam-088 | 4 | | | Square beam-104 | 4 | | | Square beam-184 | 2 | | | Beam 0808-184 | 2 | | | Beam 0808-312 | 2 | | | Plate 36 | 6 | | | Plate 79-B | 6 | | | Plate 45° | 6 | | | Plate 35120° | 6 | | | Plate-056 | 4 | | | Plate-072 | 4 | | | Plate-184 | 4 | | | Cuttable linkage | 10 | | | Bracket P3 | 8 | | | Bracket 33 | 8 | | | Bracket 36 | 6 | | | Bracket 33120° | 6 | | | Double gear rack 31T | 8 | | | Plastic gear 8T | 4 | | | Plastic gear 56T | 6 | | | Plastic gear 72T | 10 | | | Gear 16T | 6 | | | Gear 48T | 8 | | | Gear 80T | 4 | | | Linear motion slide unit | 4 | | | Sliding block A1 | 8 | | | Belt connector | 10 | | | DC motor-37 bracket | 8 | | | Brushless motor ESC | 2 | | | Friction wheel D4519.5 | 2 | | | Friction wheel ring D287 | 2 | | | PH2.0-2P to stripped-end cable | 8 | | | Mounting bracket | 2 | | | Rudder bracket | 2 | | | Servo-assisted shaft | 4 | | | 3S Li-Po battery | 1 | | | One-to-three power cord | 1 | | | B6AC balance charger | 1 | | | Mainboard bracket | 1 | | | NovaPi case | 1 | | | Power management module antenna | 1 | | | Wafer cable (600 mm) | 8 | | | mBuild cable (200 mm) | 8 | | | mBuild cable (600 mm) | 6 | | | USB cable | 1 | | | Track | 100 | | | Track axle 30 mm | 100 | | | Slotted screwdriver 2 mm | 1 | | | Plastic timing pulley 18T | 8 | | | Plastic timing pulley 62T | 8 | | | Plastic timing pulley 90T | 6 | | | Plastic timing pulley 62T with step | 4 | | | Plastic timing pulley 90T with step | 4 | | | Open-ended timing belt (5 m) | 2 | | | Timing pulley slice | 16 | | | Tire 68.522 mm | 4 | | | Aluminum sleeve 464 mm | 32 | | | Aluminum sleeve 466 mm | 16 | | | Roller | 32 | | | Nylon wheel | 8 | | | Threaded shaft 439 mm | 10 | | | D shaft 456 mm | 8 | | | D shaft 4160 mm | 4 | | | D shaft 4200 mm | 2 | | | D shaft 4240 mm | 2 | | | D shaft 4320 mm | 2 | | | Shaft D488 mm | 6 | | | Shaft D896 mm | 2 | | | Shaft D8496 mm | 4 | | | Shaft D4240 mm | 4 | | | Shaft clamping hub 8 mm | 6 | | | Bearing 8165 mm | 4 | | | Flange bearing 483 mm | 30 | | | Bearing F688ZZ | 6 | | | Flexible coupling 44 mm | 6 | | | Universal joint 44 mm | 2 | | | Shaft collar 4 mm | 35 | | | Shaft collar 8 mm | 10 | | | Shaft connector V3.0 | 20 | | | Shaft connector | 20 | | | Mecanum wheel 80 mm-L | 2 | | | Mecanum wheel 80 mm-R | 2 | | | Mecanum wheel coupling 80 mm | 4 | | | Mecanum wheel hub 80 mm | 4 | | | Cross screw with gasket M2.530 | 4 | | | Screw M2.512 | 4 | | | Combination screw M48 | 60 | | | Combination screw M410 | 60 | | | Combination screw M414 | 120 | | | Combination screw M416 | 120 | | | Combination screw M420 | 120 | | | Combination screw M430 | 60 | | | Combination screw M435 | 60 | | | Combination screw M440 | 60 | | | Headless screw M35 | 30 | | | Headless screw M38 | 40 | | | Flat cross screw M38 | 30 | | | Hex lock nut M3 | 40 | | | Hex nut M3 | 20 | | | Hex nut M4 | 220 | | | Hex lock nut M4 | 120 | | | Plastic rivet-R4060 | 100 | | | Plastic rivet-R4100 | 100 | | | Plastic rivet-R4120 | 100 | | | Plastic ring 472 mm | 50 | | | Plastic ring 473 mm | 30 | | | Plastic ring 4710 mm | 20 | | | Screwdriver 1.5 mm | 1 | | | Screwdriver 3 mm | 1 | | | Wrench 5 mm & 7 mm | 1 | | | Screwdriver hex 2.5 mm & cross | 1 | | | Small four-way socket wrench | 1 | | | Hex key 2.5 mm | 2 | | | Hex key 1.5 mm | 2 | | | Support for power management module | 1 | | | Stiffener 1616-008-M4 | 10 | |
4. About the competition
MakeX is an international robotics competition and education platform that promotes multidisciplinary learning within the fields of science and technology. It aims at building a world where STEAM education is highly appreciated and where young people are passionate about innovation by engaging them in activities such as exciting robotics competitions, STEAM carnivals, tech events, and educational conferences.
MakeX Challenge is a highly competitive event for high school and vocational school students aged 11-18 years. This event, with its simple and easy-to-understand rules, offers an exciting spectacle and enriches the overall experience of participants. Through the design, construction, and programming of large robots, the contestants enhance their design and multi-dimensional thinking skills. Additionally, the event encourages the development of logical thinking, strategic analysis, teamwork, and decision-making abilities.
To view information about registration, entry requirements, and available competitions, visit www.makex.cc/en or contact us by email: makex_overseas@makeblock.com (overseas)
makex@makeblock.com (China)
