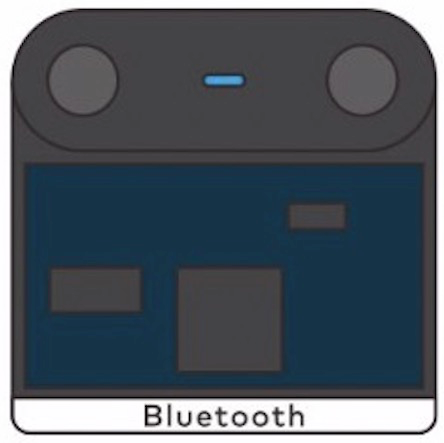

Bluetooth

The Bluetooth module can work with Makeblock Bluetooth dongle or any device supporting Bluetooth 4.0, enabling you to control mBuild modules wirelessly.

For the settings for Bluetooth connection, see "Connection through Bluetooth 4.0."

LED Indicator

  • Blinking: not connected
  • On: connected, working properly
  • Off: powered off or faulty

Specifications

  • Dimensions: 24×24 (mm)
  • Distance recommended: less than 10 m
  • Bluetooth version: BT4.0
  • Bandwidth: 2402–2480 (MHz)
  • Antenna gain: 1.5 dBi
  • Energy consumption level: ≤4 dBm
  • Operating current: 15 mA
