Introduction to the 2024 MakeX Starter All-Core Journey Educational Competition Kit
1. Basic information
| Name | 2024 MakeX Starter All-Core Journey Educational Competition Kit |
|---|---|
| SKU | P1090048 |
| EAN | 193122018579 |
| Package type | Plastic box |
| Package size (mm) | 420×305×160 |
| Gross weight (including packaging) | 3.22 kg (7.1 lb) |
| Others | Remote control and battery included |
2. Overview
The 2024 MakeX Starter All-Core Journey Educational Competition Kit covers cutting-edge knowledge in engineering, data science, AI, and IoT. It is suitable for classroom teaching, student club activities, and multi-task and creative robotics competitions. The product supports multi-threaded graphical and Python programming. It features built-in Wi-Fi and Bluetooth, allowing for swift switching between Live and Upload modes. This functionality facilitates easier classroom teaching.

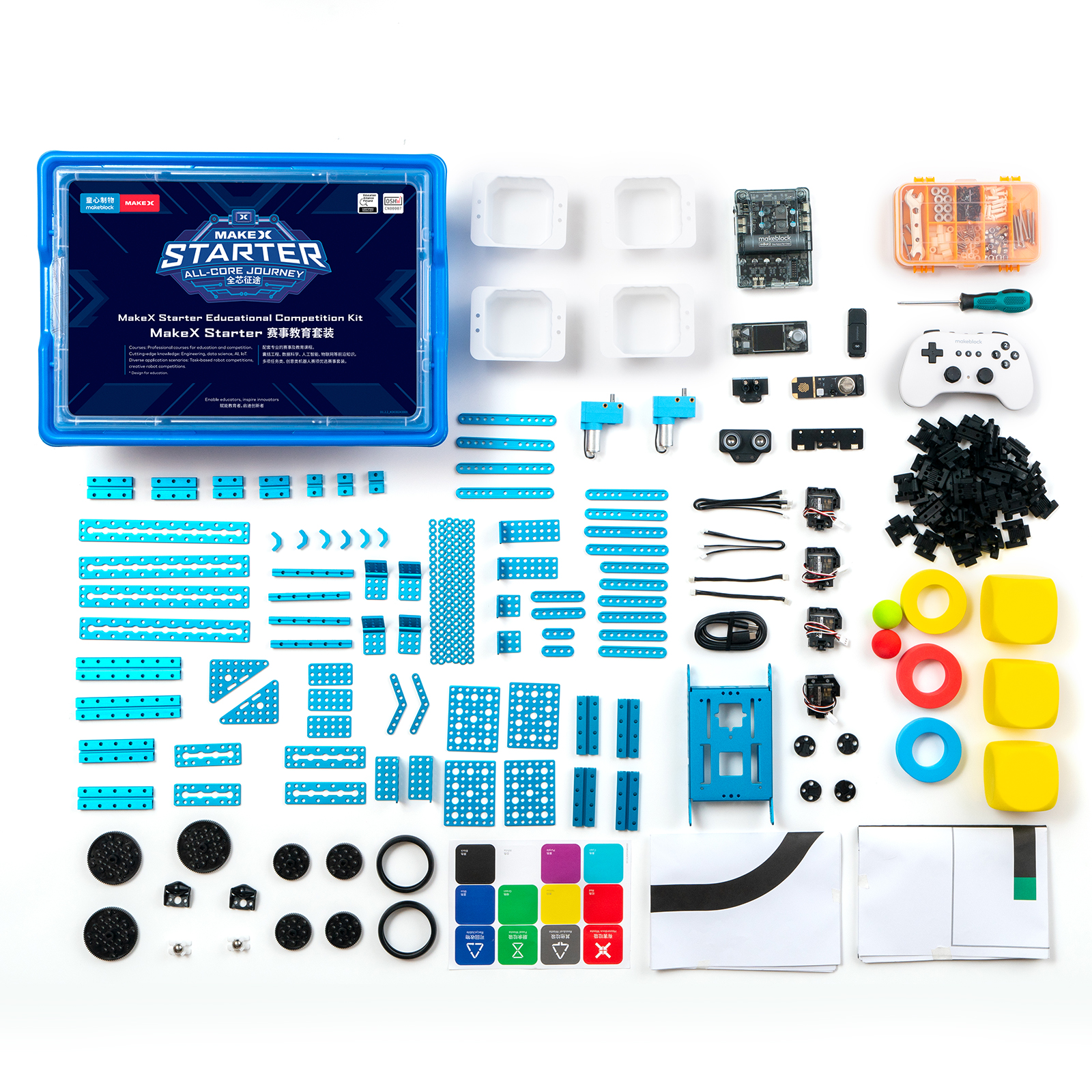

3. Parts list
| Name | Quantity | **cumentation |
|---|---|---|
| CyberPi | 1 | For technical information on CyberPi, see CyberPi. |
| For the operation guide of CyberPi, see CyberPi Operation Guide. | ||
| mBot2 shield | 1 | For technical information on mBot2 shield, see mBot2 Shield. |
| Bluetooth dongle | 1 | For the operation guide of Bluetooth dongle, see Wireless Adapter. |
| Ultrasonic sensor 2 | 1 | For technical information on ultrasonic sensor 2, see Ultrasonic Sensor 2. |
| Quad RGB sensor | 1 | For technical information on quad RGB sensor, see Quad RGB Sensor. |
| Dual RGB color sensor | 1 | For technical information on dual RGB color sensor, see Dual RGB Color Sensor. |
| Science sensor | 1 | For technical information on science sensor, see Science Sensor. |
| Servo MS-1.5A | 4 | For technical information on servo MS-1.5A, see Servo MS-1.5A. |
| 180 optical encoder motor | 2 | For technical information on 180 optical encoder motor, see 180 Optical Encoder Motor. |
| Bluetooth controller | 1 | For technical information on Bluetooth controller, see Bluetooth Controller. |
| Cable for 180 optical encoder motor (180 mm) | 2 |
- The kit uses CNC machined aluminum connecting pieces for strong structures and tight fits.
- The kit is compatible with a wide range of industry standard parts, making it perfect for various industrial applications.
For information on beams (12 types, 37 items), see Slide Beam 0824 Beam 0808 Square Beam 2424
For information on brackets (4 types, 10 items), see Brackets.
For information on linkages (8 types, 25 items), see Linkages.[
](https://www.yuque.com/makeblock-help-center-zh/maker_platform/dkpslp) | | mBuild cable (100 mm) | 2 | | | mBuild cable (200 mm) | 3 | | | USB cable (Type-C) | 1 | | | mBot2 chassis | 1 | | | Slide beam-016 | 3 | | | Slide beam-032 | 2 | | | Slide beam-048 | 2 | | | Slide beam-064 | 4 | | | Slide beam-080 | 2 | | | Slide beam-112 | 2 | | | Square beam-088 | 4 | | | Beam-036 | 2 | | | Beam-060 | 2 | | | Beam-076 | 6 | | | Beam-092 | 4 | | | Beam-108 | 4 | | | Plate-072 | 2 | | | Plate-088 | 2 | | | Plate-184 | 4 | | | Bracket 33 | 2 | | | Bracket 36 | 2 | | | Bracket 38 | 2 | | | Bracket 33120° | 4 | | | Plate 36 | 3 | | | Triangle plate 68 | 2 | | | Plate 79-B | 4 | | | Plate 45° | 2 | | | Cuttable linkage | 6 | | | Black plastic timing pulley 62T with step | 4 | | | Black plastic timing pulley 90T with step | 3 | | | Slick tire | 2 | | | Mini wheel | 2 | | | Track | 50 | | | Track axle 30 mm | 50 | | | Cross screw M2.512 | 4 | | | Screw M48 | 50 | | | Screw M414 | 30 | | | Screw M425 | 16 | | | Screw M430 | 4 | | | Screw M435 | 6 | | | Headless screw M35 | 10 | | | Hex nut M4 | 60 | | | Hex lock nut M4 | 20 | | | Plastic ring 472 mm | 20 | | | Plastic ring 4710 mm | 20 | | | Plastic rivet-R4060 | 20 | | | Plastic rivet-R4120 | 10 | | | Plastic cup | 4 | | | Green ball 32 mm | 1 | | | Red ball 32 mm | 1 | | | Yellow cube 70 mm | 3 | | | Item sticker | 1 | | | Line-following map | 1 | | | Junction map | 1 | | | Screwdriver hex 2.5 mm & cross | 1 | | | Wrench 5 mm & 7 mm | 1 | | | Hex key 1.5 mm | 1 | | | Screw box | 1 | | | Mini injection omni wheel | 2 | | | Blue ring 407020 mm | 1 | | | Yellow ring 407020 mm | 1 | | | Red ring 407020 mm | 1 | | | D shaft 456 mm | 4 | | | Shaft collar | 8 | | | Brass stud M4*(8+6) | 2 | | | Stiffener 1616-008-M4 | 6 | |
4. About the competition
MakeX is an international robotics competition and education platform that promotes multidisciplinary learning within the fields of science and technology. It aims at building a world where STEAM education is highly appreciated and where young people are passionate about innovation by engaging them in activities such as exciting robotics competitions, STEAM carnivals, tech events, and educational conferences.
MakeX Starter is a multi-task event for elementary school students aged 6-13 years. The event integrates the automatic stage and the manual stage, which makes it more fun and engaging. The independent missions and alliance missions fully exercise the critical thinking and strategic planning abilities of contestants, and enhance the collaboration between alliance teams.
To view information about registration, entry requirements, and available competitions, visit www.makex.cc/en or contact us by email: makex_overseas@makeblock.com (overseas)
makex@makeblock.com (China)
