Introduction to the 2024 MakeX Starter Upgrade Kit
1. Basic information
| Name | 2024 MakeX Starter Upgrade Kit |
|---|---|
| SKU | P1090049 |
| EAN | 193122018586 |
| Package type | Plastic box |
| Package size (mm) | 420×305×160 |
| Gross weight (including packaging) | 2.56 kg (5.64 lb) |
| Others | Remote control included, battery not included |
2. Overview
The 2024 MakeX Starter Upgrade Kit can work with mBot2 or the 2022 MakeX Starter Educational Competition Kit. Together, they constitute the 2024 MakeX Starter All-Core Journey Educational Competition Kit. This upgrade kit is suitable for those who already have an mBot2 or those who want to customize their kit for the 2024 MakeX Starter competition.
For more information, see Introduction to the 2024 MakeX Starter All-Core Journey Educational Competition Kit.

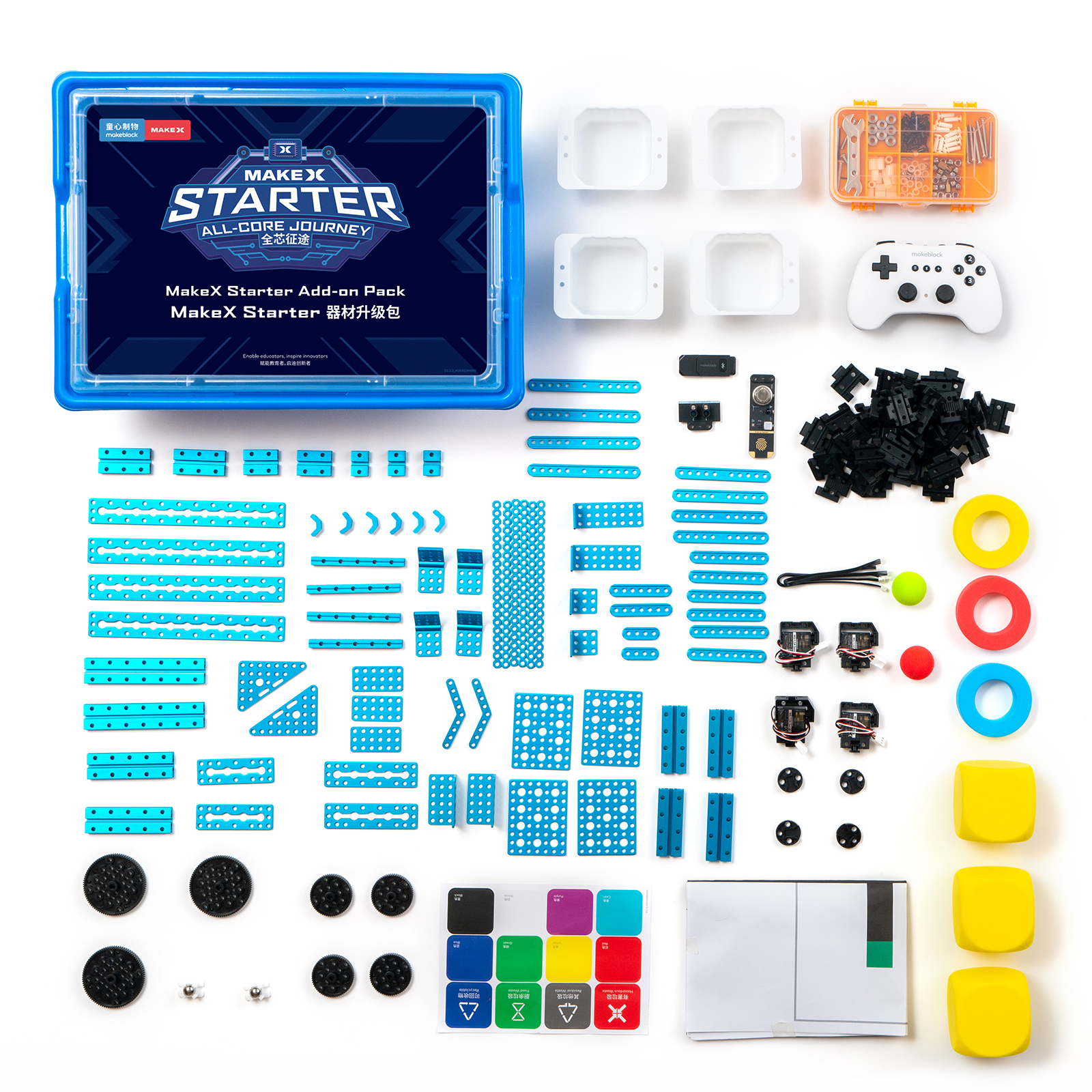

3. Parts list
| Name | Quantity | Documentation |
|---|---|---|
| Bluetooth dongle | 1 | For the operation guide of Bluetooth dongle, see Wireless Adapter. |
| Science sensor | 1 | For technical information on science sensor, see Science Sensor. |
| Dual RGB color sensor | 1 | For technical information on dual RGB color sensor, see Dual RGB Color Sensor. |
| Servo MS-1.5A | 4 | For technical information on servo MS-1.5A, see Servo MS-1.5A. |
| Bluetooth controller | 1 | For technical information on Bluetooth controller, see Bluetooth Controller. |
| mBuild cable (200 mm) | 3 |
- The kit uses CNC machined aluminum connecting pieces for strong structures and tight fits.
- The kit is compatible with a wide range of industry standard parts, making it perfect for various industrial applications.
For information on beams (12 types, 37 items), see Slide Beam 0824 Beam 0808 Square Beam 2424
For information on brackets (4 types, 10 items), see Brackets.
For information on linkages (8 types, 25 items), see Linkages.
[
](https://www.yuque.com/makeblock-help-center-zh/maker_platform/dkpslp) | | Slide beam-016 | 3 | | | Slide beam-032 | 2 | | | Slide beam-048 | 2 | | | Slide beam-064 | 4 | | | Slide beam-080 | 2 | | | Slide beam-112 | 2 | | | Square beam-088 | 4 | | | Beam-036 | 2 | | | Beam-060 | 2 | | | Beam-076 | 6 | | | Beam-092 | 4 | | | Beam-108 | 4 | | | Bracket 33 | 2 | | | Bracket 36 | 2 | | | Bracket 38 | 2 | | | Bracket 33120° | 4 | | | Plate-072 | 2 | | | Plate-088 | 2 | | | Plate-184 | 4 | | | Plate 36 | 3 | | | Triangle plate 68 | 2 | | | Plate 79-B | 4 | | | Plate 45° | 2 | | | Cuttable linkage | 6 | | | Black plastic timing pulley 62T with step | 4 | | | Black plastic timing pulley 90T with step | 3 | | | Track | 50 | | | Track axle 30 mm | 50 | | | Screw M48 | 50 | | | Screw M414 | 30 | | | Screw M425 | 16 | | | Screw M430 | 4 | | | Screw M435 | 6 | | | Headless screw M35 | 10 | | | Hex nut M4 | 60 | | | Hex lock nut M4 | 20 | | | Plastic ring 472 mm | 20 | | | Plastic ring 4710 mm | 20 | | | Plastic rivet-R4060 | 20 | | | Plastic rivet-R4120 | 10 | | | Plastic cup | 4 | | | Green ball 32 mm | 1 | | | Red ball 32 mm | 1 | | | Yellow cube 70 mm | 3 | | | Blue ring 407020 mm | 1 | | | Yellow ring 407020 mm | 1 | | | Red ring 407020 mm | 1 | | | Item sticker | 1 | | | Junction map | 1 | | | Wrench 5 mm & 7 mm | 1 | | | Hex key 1.5 mm | 1 | | | Screw box | 1 | | | Mini injection omni wheel | 2 | | | D shaft 456 mm | 4 | | | Shaft collar | 8 | | | Brass stud M4(8+6) | 2 | | | Stiffener 1616-008-M4 | 6 | |
4. About the competition
MakeX is an international robotics competition and education platform that promotes multidisciplinary learning within the fields of science and technology. It aims at building a world where STEAM education is highly appreciated and where young people are passionate about innovation by engaging them in activities such as exciting robotics competitions, STEAM carnivals, tech events, and educational conferences.
MakeX Starter is a multi-task event for elementary school students aged 6-13 years. The event integrates the automatic stage and the manual stage, which makes it more fun and engaging. The independent missions and alliance missions fully exercise the critical thinking and strategic planning abilities of contestants, and enhance the collaboration between alliance teams.
To view information about registration, entry requirements, and available competitions, visit www.makex.cc/en or contact us by email: makex_overseas@makeblock.com (overseas)
makex@makeblock.com (China)
